Accessible Wheelchair Lifts

A vertical platform or porch lift provides an attractive and practical solution for making your home accessible for a wheelchair user. Alternatively, installing a ramp necessitates large amounts of time and money to build and uses more space than the simple and inexpensive wheelchair lift.

When installed indoors a Wheelchair Lift offers an affordable alternative to residential elevators.

Visit us at our new site:
FreedomLiftSystems.com

freedom

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then installing a Wheelchair Lift is a great way to ensure safely and convenience every time you enter and exit your home. Vertical platform lifts are used to overcome differences in height which prohibit the use of a wheelchair or scooter.

A wheelchair lift can be customized to accommodate new or existing buildings with little or no modification.

The Trus-T-Lift system can be installed indoors or outdoors (i.e. as a porch lift) and is designed to be completely resistant to the harshest weather conditions.

Our wheelchair accessible vertical platform lifts are easily installed and have a lifting range from 28" up to as much as 12 feet (144"). The Trus-T-Lift system is installed worldwide and is an economical way to offer home / building accessibility.

Once the wheelchair platform lift system is assembled the installation consists of placing the unit where you want it, securing it, and plugging it in to a standard power outlet. Some assembly required see installation in 30 minutes video at bottom of this page)

Trus-T-Lift's smooth and quiet performance makes this light weight, dependable and versatile unit perfect for many applications.




1) Residential Wheelchair Porch Lifts

The Residential Trus-T-Lift system was designed for home use and offers an inexpensive means for providing entry into your house or apartment.

It's easy to operate easy to install and almost maintenance free. Safety features include a non-slip low platform for easy roll-on/roll-off, safety barrier, a 36" railing, and constant pressure switches.

The sturdy engineering enables lifting and lowering up to 750 pounds accommodating both electric wheelchairs and scooters.

The lifts are completely weatherized and attractively finished in a durable off-white finish.

The Residential Porch Lifts come in 28", 52" and 72" Models, depending on required vertical lift height.

Residential Vertical Platform lifts are very economical with prices starting at $3,684, not including shipping or installation.



residential porch lifts for wheelchair access for handicapped

Specifications - Residential Porch Lifts pdf download icon

Installation Manual - Residential pdf download icon

get_adobe_acrobat_reader (required to view spec sheets and manuals)

 View Video

2) High Tower Wheelchair Lifts

The Hightower Trus-T-Lift wheelchair lift system accommodates 6' to 12' ft lift distance from floor to floor. Lifts over 52" to be secured to the building for additional support.

Hightower lift package includes a carriage gate, 42" solid side rails and an electro/mechanical interlock for an upper gate (we also offer upper gates). These models start at $8,259 not including shipping and installation. These units are much more affordable than a costly elevator solution.

Models are available to suit a variety of lift height requirements.



Specifications - Hightower Lift pdf download icon

Installation Manual - Residential pdf download icon

Installation Manual - Commercial (see Gates and Interlocks) pdf download icon

 View Video

3) Commercial Wheelchair Lifts

Installing the Commercial Trus-T-Lift system is simple, smooth and easy.

Our commercial wheelchair lifts have been manufactured for over 20 years and have national and international experience ensuring our Commercial Trus-T-Lift systems to meet your local code requirements.

The codes can be confusing with over 9 different national codes. Each state (and some municipalities) follows 1 of the 9 national codes and will often make changes and/or additions to it. In addition, individual elevator inspectors may have their own requirements for a particular installation. In most of the country the lift must be installed by a licensed elevator installer, however is some areas a license in not required.

We can help you have a successful project. Gather information on the project such as building address, lifting height and lift configuration, local building /elevator department code requirements, and get a copy of the building plans. Send us this information and we can provide you with a quotation and installation drawings for the building inspector.

The Commercial Trus-T-Lift system starts at $7,998 not including shipping or installation.



commercial_wheelchair_platform_lift

Specifications - Commercial Liftpdf download icon

Installation Manual - Commercial pdf download icon

 View Video

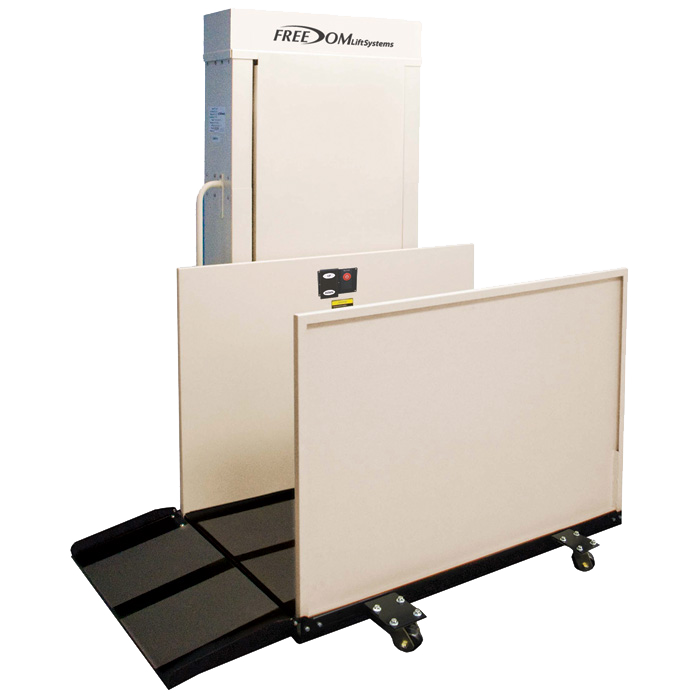

4) Portable Wheelchair Lifts

The Portable Trus-T-Lift system is on high grade casters that make it easy to move from one location to the next. These high grade casters have a foot activated locking position to prevent the lift from moving once you have it into position. This units low cost and ease of installation make it ideal for commercial applications.

Another key benefit is that the portable units are exempt from the ASME 18.1 standards making them a very economical way to offer wheelchair access to heights up to 52".

The portable vertical platform lift has a maximum lifting height of 52" and can lift up to 550 lbs.

The Portable Trus-T-Lift system is an institutional quality wheelchair lift. Expanded metal construction of makes the lift easy to move and allowing the operator to see under the lift, making operation even safer.

Portable Vertical Platform lifts are very economical with prices starting at $5,745, not including shipping or installation.



Specifications - Portable Lift pdf download icon

Installation Manual - Portable pdf download icon

 View Video


Call 1-877-947-7769



All Trus-T-Lift systems Feature

Innovative Soft Touch Control Pads for Ease of Operation

All weather design for outdoor installations

Easy to install

750 lb capacity (except portable lift)

Large platform with non-skid surface

Reliable Direct drive Worm-Gear / Screw-Nut Drive

Options

Under carriage safety plate
Carriage and Landing gates
Solid hand rail and solid end walls

8 feet/minute lift speed

Automatic folding entry and exit ramps

Minimal maintenance

Prewired to use standard 110V/15A power

Emergency manual operational

U.L. and C.S.A. Certified



Fully operational 12V DC battery back-up
Custom finishes

Our Accessible Wheelchair Lift meets National Standards, however it is very important to check State and Local code requirements to ensure compliance. All State and local compliance is the responsibility of the purchaser.

The Trus-T-Lift elevator requires a solid, smooth, and level mounting surface with an area of 60" x 66" or (66" x 66" for an adjacent style lift). We recommend a 6' x 6' concrete pad with a minimum 4" thickness.

Ensure the toe plate will land on a solid surface, this will require an addition 12" to 20" on the entrance side of the lift. The mounting surface must be solid enough to support the lift and it's maximum rated load (1080 lbs for the basic lift). A solid wood or concrete deck would be an acceptable mounting surface. Note: Four 3/8" x 2 3/4" concrete wedge anchors are shipped with each lift.

A 110 VAC 15A electrical receptacle is required within 6 feet of the tower side of the lift.

All lifts over 52" in travel should be secured to the building for additional support.

Adjacent Access

L - Deck Length - 54"
D - Deck Width - 40"
W - Total Width - 54"
Straight Through Access

L - Deck Length - 54"
D - Deck Width - 34"
W - Total Width - 48"
